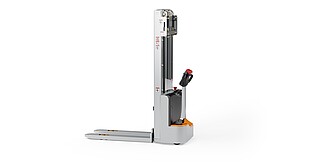

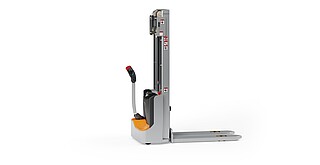

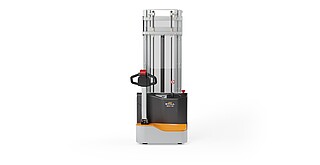

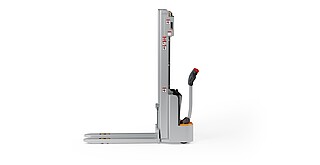

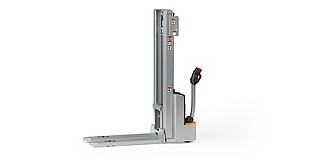

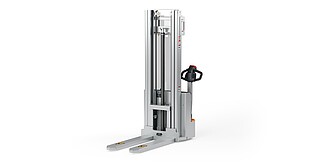

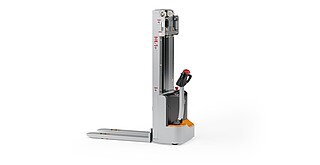

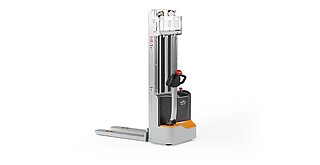

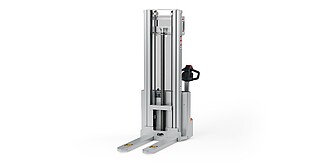

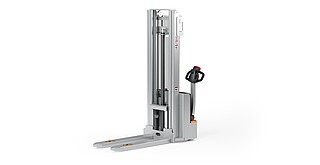

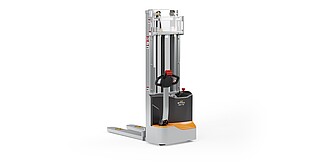

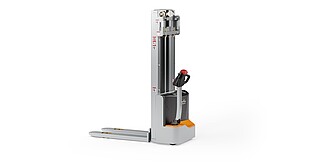

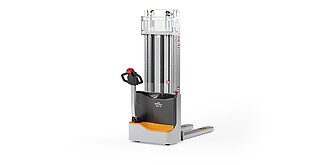

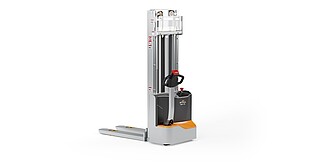

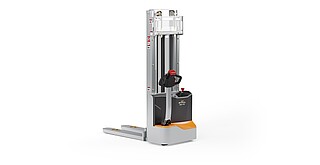

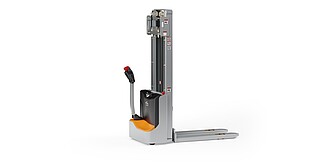

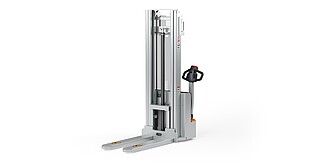

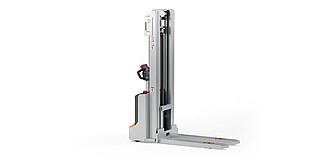

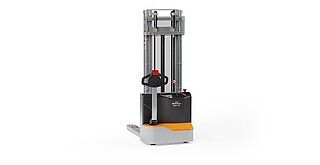

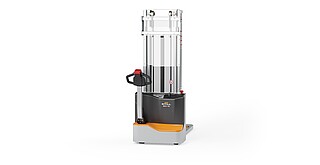

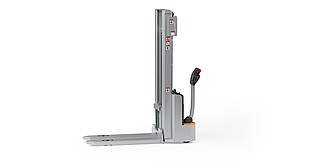

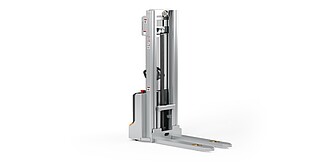

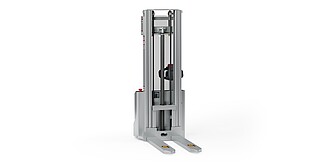

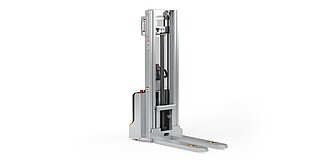

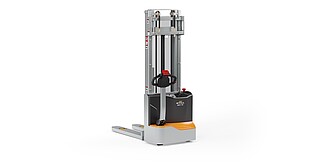

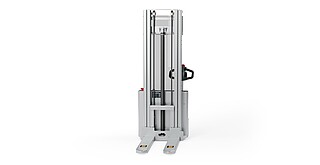

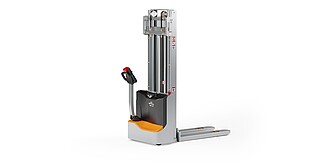

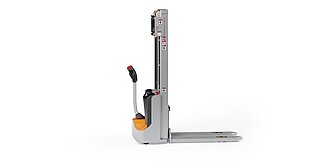

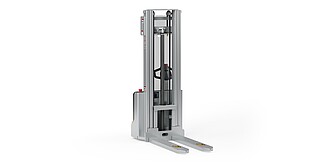

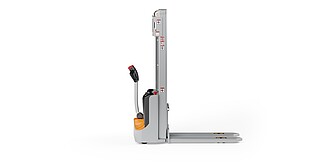

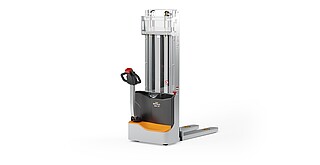

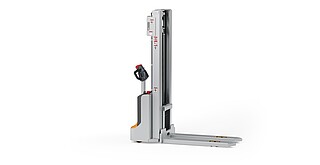

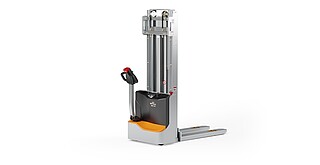

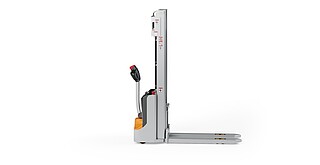

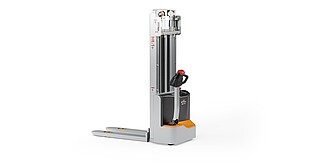

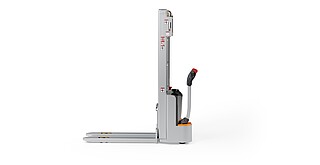

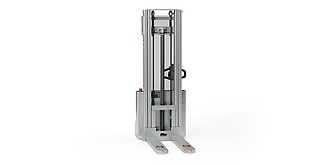

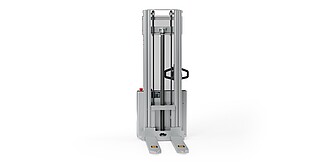

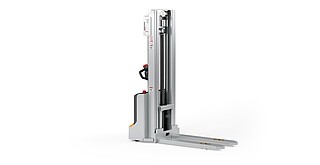

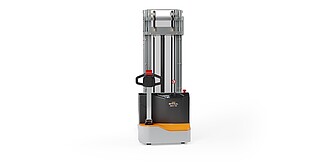

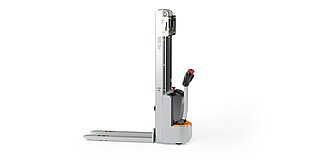

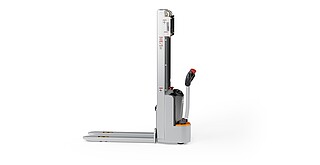

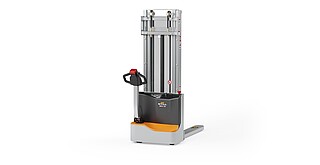

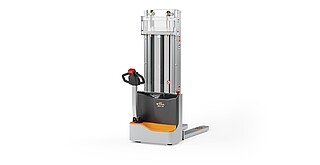

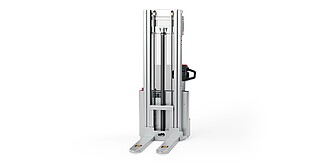

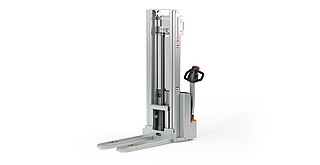

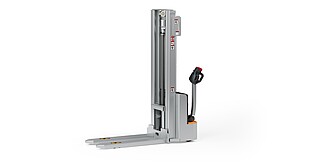

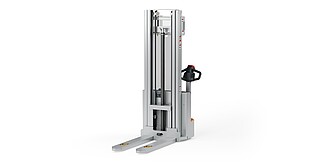

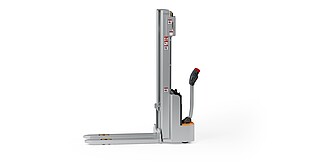

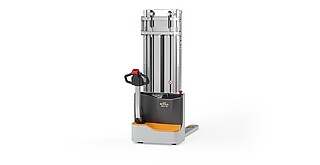

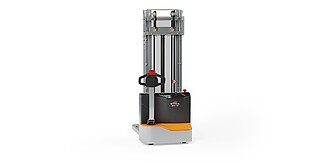

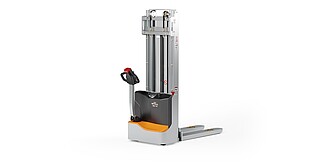

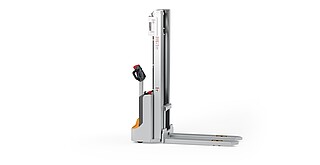

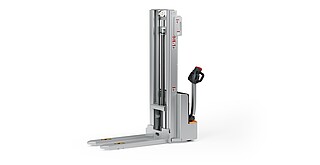

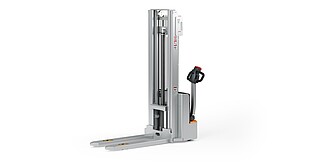

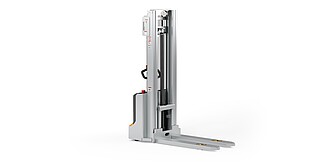

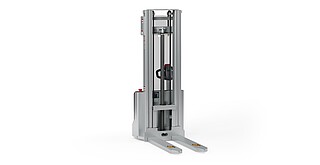

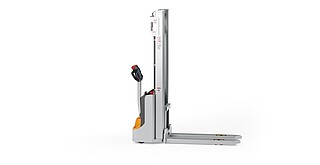

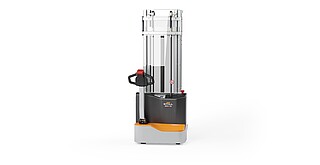

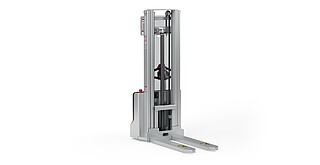

High Lift Pallet Truck ECV 10
Lifting Made Easy
- Load capacity 1000 kg
- Rated lift 3227 mm
- Speed 4.8 km/h
Reaching new heights: With the ECV 10 you can reach a lift height of up to 3,227 mm. Paired with a maximum lifting capacity of up to 1,000 kg, the ECV 10 high lift pallet truck provides ideal support for light and sporadic stacking applications. The compact truck dimensions enable transporting and stacking even in tight working areas and narrow aisles. Two 12 V batteries provide 125 ampere hours for long operating times, and with its built-in charger, the ECV 10 can be recharged at any standard power socket. The LED display shows the current battery charge status and the operating hours, so the operator always has everything in sight. The ECV 10 also performs well in terms of safety. The wide view between the lift profiles allows for an optimum view of the fork tips. In addition, the lowered design of the vehicle frame protects the feet of operators and third parties. The ECV 10 is also equipped with automatic speed reduction based on lift height, to keep you safe when driving. All functions can be operated with equal ease by left- and right-handed operators thanks to the optimised shape of the tiller.
High turnover performance:
Lifting capacity up to 1,000 kg and lift heights up to 3,227 mm
Maximum availability:
Long battery life and built-in charger for easy charging
Manoeuvrable and compact:
Small front end enables excellent manoeuvrability and usage in narrow aisles
ECV 10 اطلب
املأ الاستمارة
.سنعود إليك في أقرب وقت ممكن
The ECV 10 in detail
The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency
Simply easy
Low service weight
enables smooth steering
Both left- and right-handed
users can intuitively operate all of the driving, lifting and lowering functions
Tandem load rollers
provide for smooth driving behaviour on uneven ground
Low steering forces when manoeuvring
relieve the stress on the operator
Simply powerful
Effective goods handling
thanks to a load capacity of up to 1,000 kg
High degree of storage compression
thanks to maximum lift heights of up to 3,227 mm on the ECV 10
Maintenance-free batteries
save precious time
Simply safe
Optimum stability
thanks to four-wheel chassis
Optimum view of the forks
thanks to free view mast or mono mast
Fatigue-free operation of all driving, lifting, and lowering functions
for both left- and right-handed operators
The low chassis frame protects the feet
of operators and third parties in public areas
Lift height-dependent speed reduction
increases safety
No battery gassing
– this protects operators and the environment
Simply flexible
Compact front end
enables use in tight working areas and narrow aisles
Possible use on mezzanine floors
due to low service weight
The built-in charger allows for flexible and decentralised charging
of the forklift truck
Simply connected
Battery charge display:
Battery status is quick and easy to read so batteries can be charged in good time whenever necessary
Applications
ECV 10 اطلب
املأ الاستمارة
.سنعود إليك في أقرب وقت ممكن
Media Centre
Model Overview
| Model | Maximum capacity (kg) | Maximum lift height (mm) | Travel speed (km/h) | Battery voltage (V) |
|---|---|---|---|---|
| ECV 10 | 1.000 | 3.227 | 4,8 | 2*12 |
Downloads
The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
